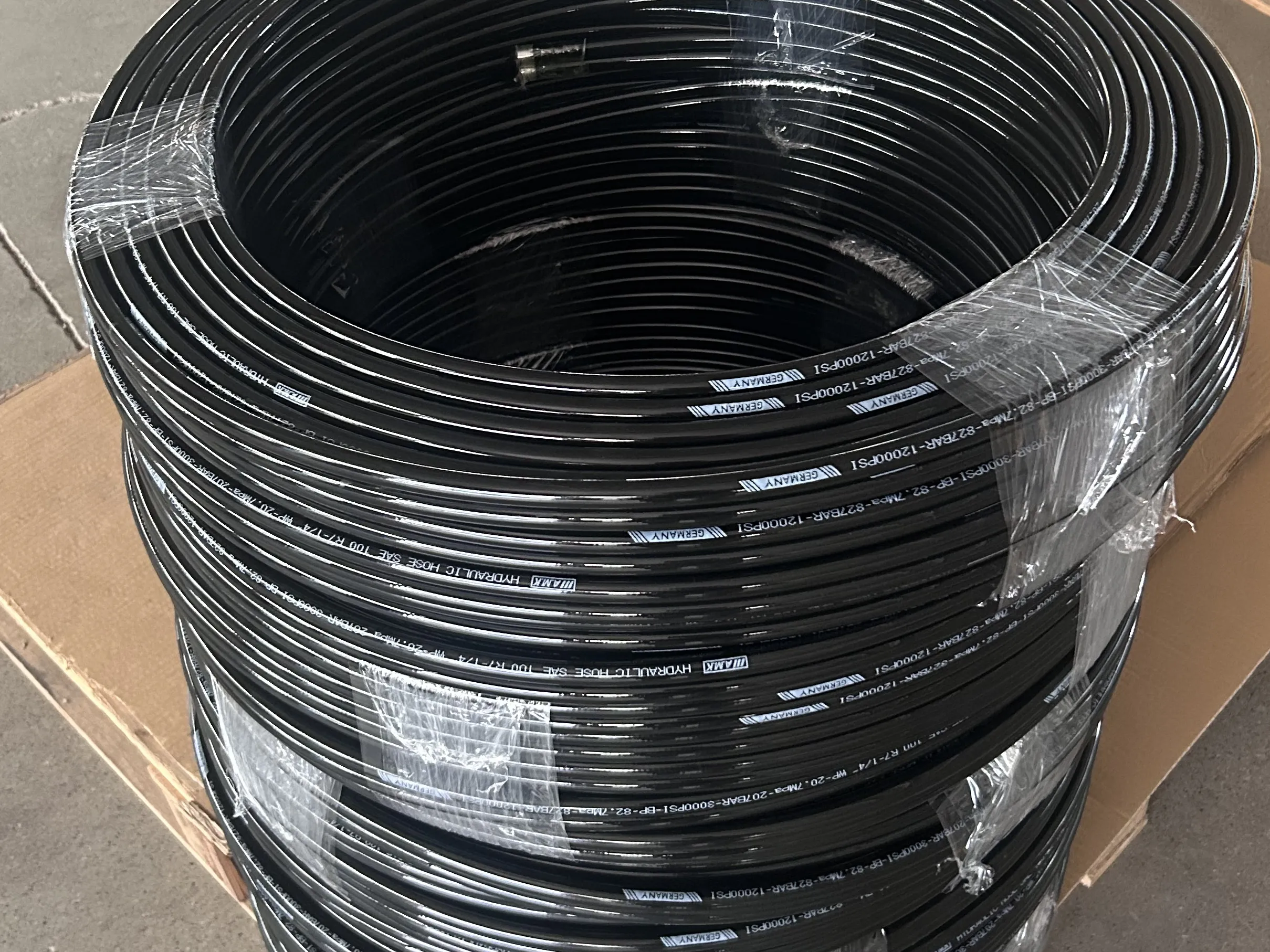

Ultra-High Pressure Hose
Hose
Dimensions:
Ultra High Pressure Thermoplastic Hose is a hose specifically designed to withstand extremely high pressures, made primarily of thermoplastic materials, and characterized by high strength and flexibility. The following are its main features and applications: Main feature
Consult Now
Consult Now
Consult Now
|
Modal |
I.D(mm) |
O.D(mm) |
Working pressure(bar) |
Min.Burst Pressure(bar) |
Bending radius (mm) |
|
HX3/2S |
3 |
6.5 |
1200 |
3000 |
95 |
|
HX4/2S |
4 |
8.6 |
1200 |
3000 |
105 |
|
HX4/4S |
4 |
12 |
2000 |
5000 |
130 |
|
HX5/2S |
5 |
10 |
1200 |
3000 |
115 |
|
HX5/4S |
5 |
12.5 |
1800 |
4500 |
145 |
|
HX5/6S |
5 |
14 |
2800 |
6250 |
160 |
|
HX5/8S |
8 |
20.7 |
4000 |
8000 |
250 |
|
HX6/2S |
6.3 |
12 |
1200 |
2750 |
130 |
|
HX6/2SP |
6.3 |
13.5 |
1200 |
2900 |
125 |
|
HX6/4S |
6.3 |
14 |
1800 |
4250 |
140 |
|
HX8/2S |
8 |
14 |
1000 |
2500 |
155 |
|
HX8/2SP |
8 |
16.2 |
1000 |
2500 |
155 |
|
HX8/4S |
8 |
16.2 |
1600 |
4000 |
175 |
|
HX8/6S |
8 |
18.3 |
2100 |
5250 |
250 |
|
HX8/8S |
8 |
20.7 |
2800 |
6500 |
300 |
|
HX10/2S |
10 |
17.7 |
800 |
2500 |
190 |
|
HX10/2SP |
10 |
19 |
1000 |
2500 |
180 |
|
HX10/4S |
10 |
20 |
1600 |
4000 |
200 |
|
HX10/4SP |
10 |
21.6 |
1600 |
4000 |
200 |
|
HX10/6S |
10 |
22 |
2200 |
5500 |
220 |
|
HX12/2SP |
12 |
21.7 |
800 |
2000 |
190 |
|
HX12/4S |
12 |
22.5 |
1500 |
4000 |
210 |
|
HX12/4SP |
12 |
24.2 |
1500 |
4000 |
210 |
|
HX12/6S |
12 |
25 |
1800 |
4500 |
230 |
|
HX16/2SP |
16 |
25.4 |
630 |
1500 |
230 |
|
HX16/4S |
16 |
26 |
1000 |
2500 |
260 |
|
HX16/6S |
16 |
30 |
1500 |
3750 |
290 |
|
HX19/2SP |
19 |
28.6 |
600 |
1500 |
260 |
|
HX19/4S |
19 |
32 |
1000 |
2500 |
300 |
|
HX19/6S |
19 |
34 |
1500 |
2750 |
320 |
|
HX25/2S |
25 |
36.5 |
400 |
1000 |
320 |
|
HX25/2S |
25 |
39 |
600 |
1500 |
400 |
Application:
1. WATER CLEANING:Heat Exchanger Tube Cleaning,Ultra High Pressure Water jet Table Cutting, Ultra High Pressure Tube Cleaning, Paint Removal, Automated Cleaning Booths, Hydro Demolition of Concrete, Large Bore PipeCleaning, Tank and Vessel Cleaning, Water blast Supply Hose
2. HYDRAULIC: Instrumentation Packages for Gauges, Pressure Testing for Valves, Tooling and Control Panels Bolt Tensioning and Torque Tools, Hydraulic Jacks, Controls for Service Equipment, Instrumentation Packages for Gauges, Pressure Testing for Valves, Tooling and Control Panels
Structure:
Inner tube material: POM or PA Reinforced: high tensile steel wire winding Outer tube material: PU or PA
Temperature:
-30 to 100℃
