SAE 100 R7 Hose
Hose
Dimensions:
Suitable for Hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earth moving, Articulating & Telescopic booms and Material equipment. Can be used for industrial gases and other applications, please consult us.
Consult Now
Consult Now
Consult Now
Application:
Medium Pressure Hydraulic Lines 70 to 210 bar.
Suitable for Hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earth moving, Articulating & Telescopic booms and Material equipment. Can be used for industrial gases and other applications, please consult us.

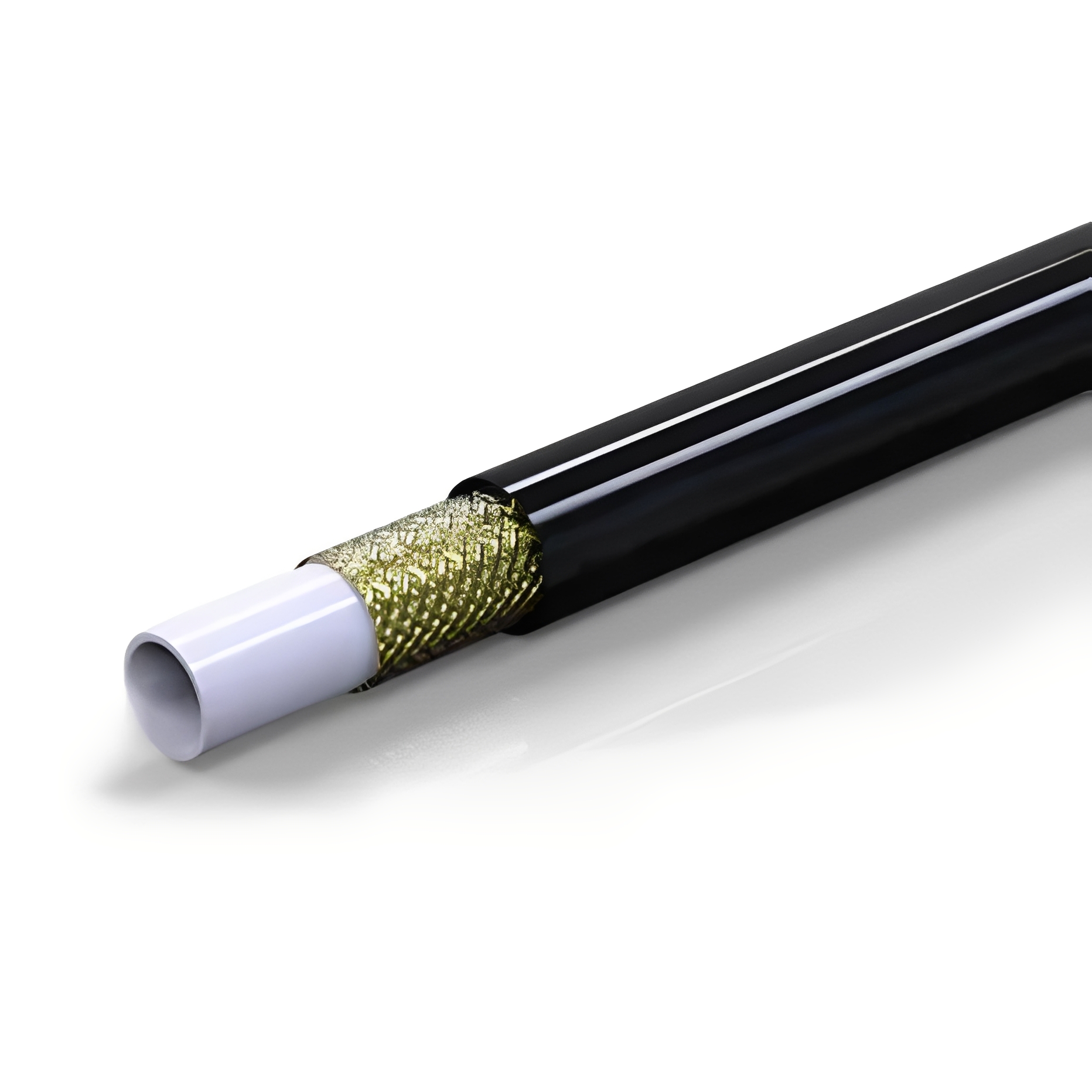

Structure:
Core:PA(polyamide)
Reinforcement:single braided of high tensile synthetic fiber
Cover:PU(polyurethane)
Temperature:
-40 to 100℃
Twin & multi line hose Available
Product Parameter
|
SAE100R7 HOSE |
||||||||||
|
I.D |
O.D |
W.P(working pressure) |
B.P(burst pressure) |
MIN.Bend Radius |
Remark |
|||||
|
inch |
mm |
inch |
mm |
bar |
psi |
bar |
psi |
mm |
inch |
|
|
1/8 |
3 |
0.23 |
6 |
210 |
3045 |
840 |
12180 |
25 |
1.0 |
|
|
1/8 |
3.5 |
0.31 |
8 |
210 |
3045 |
840 |
12180 |
25 |
1.0 |
|
|
5/32 |
4 |
0.34 |
8.6 |
210 |
3045 |
840 |
12180 |
25 |
1.0 |
|
|
3/16 |
5 |
0.38 |
9.6 |
200 |
2900 |
800 |
11600 |
25 |
1.0 |
|
|
1/4 |
6.4 |
0.45 |
11.5 |
200 |
2900 |
800 |
11600 |
32 |
1.3 |
|
|
5/16 |
8 |
0.52 |
13.2 |
180 |
2610 |
720 |
10440 |
45 |
1.8 |
|
|
3/8 |
10 |
0.60 |
15.2 |
160 |
2320 |
640 |
9280 |
55 |
2.2 |
|
|
1/2 |
13 |
0.75 |
19 |
140 |
2030 |
560 |
8120 |
77 |
3.0 |
|
|
5/8 |
16 |
0.87 |
22 |
100 |
1450 |
400 |
5800 |
110 |
4.4 |
|
|
3/4 |
19 |
1.02 |
26 |
90 |
1305 |
360 |
5220 |
140 |
5.5 |
|
|
1 |
25 |
1.30 |
33 |
70 |
1015 |
280 |
4060 |
200 |
8.0 |
|
Product Description:
SAE 100 R7 Hose is typically made of a high performance synthetic resin material.
Its main advantages include:
Excellent chemical resistance: able to resist the erosion of a variety of chemical substances, excellent performance in scenarios involving chemical agent transport. For example, when transporting certain corrosive liquids in chemical plants, it can maintain the stability of the pipe.
Good wear resistance: In the process of long-term use and friction with objects, the degree of wear is relatively low. For example, in material handling systems, pipe damage due to friction can be reduced.
High strength and compressive resistance: it can withstand large pressure to ensure the stable transmission of fluid.
Good flexibility: can adapt to different installation and use environment, easy to bend and layout.
In short, SAE 100 R7 Hose plays an important role in specific industrial and engineering fields due to its unique performance, but its performance characteristics, cost and specific use environment should be considered comprehensively when selecting.
