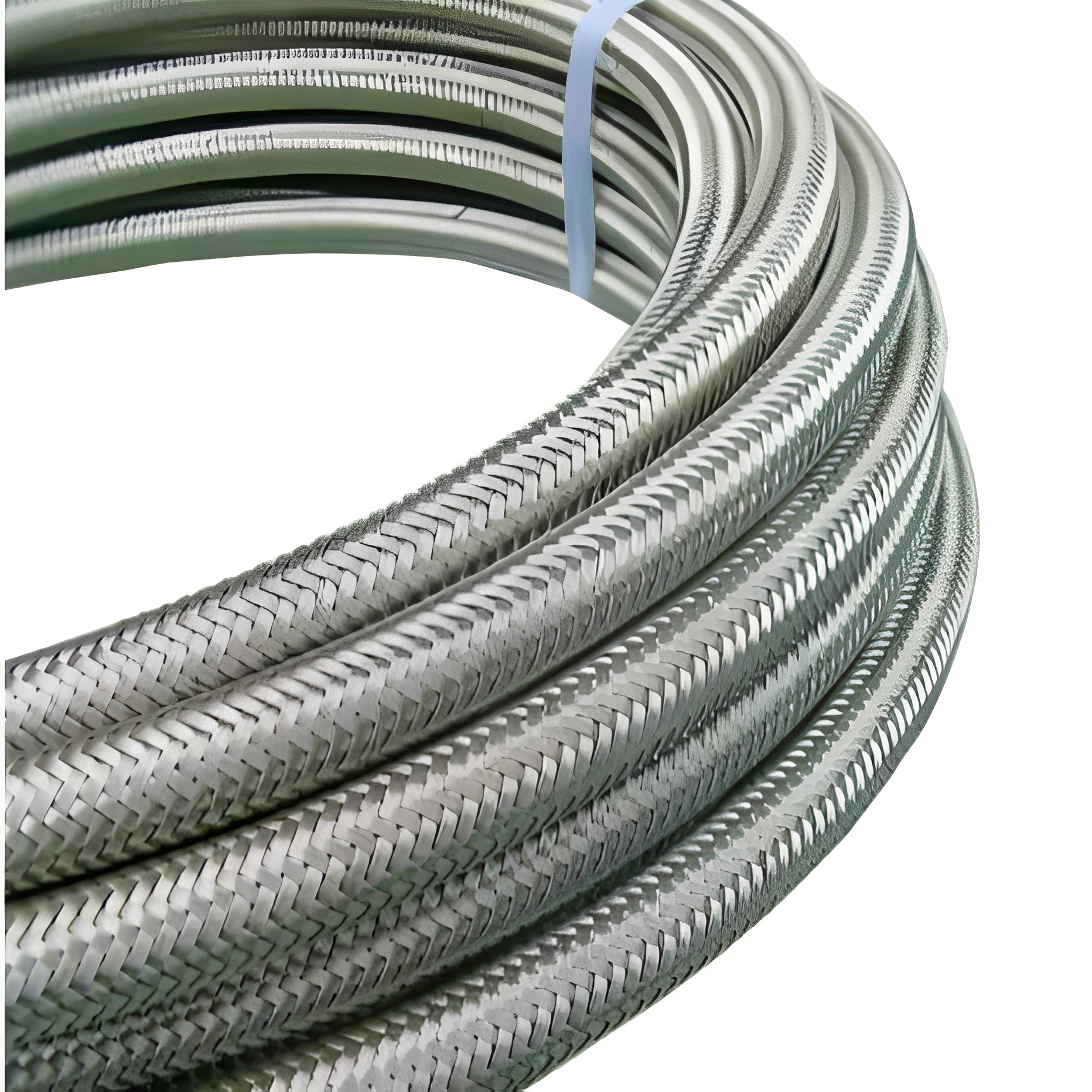

SAE 100 R14 Hose
Hose
Dimensions:
SAE 100 R14 Hose is a high performance hydraulic hose designed for use in demanding hydraulic systems. Made of resin, this hose offers excellent chemical and high temperature resistance, making it ideal for use in harsh environments. It is designed in accordance with SAE J517 100R14 to ensure stability and reliability under high pressure.
Consult Now
Consult Now
Consult Now
Application:
1. Application:
Resistance to acid and alkali,can be used for food processing,chemicals,very high and low temperature fluid, gas and other aspects.
2. Structure:
Core: PTFE
Reinforcement:304 steel wire braided
3.Temperature:-54 to 260℃
|
size |
I.D(mm) |
O.D(mm) |
THICKNESS(mm) |
W.P(bar) |
B.P(bar) |
MIN BEND RADIUS(mm) |
|
1/8'' |
2.85~3.25 |
5.45~6.15 |
0.65~1 |
225 |
900 |
70 |
|
1/4'' |
5.95~6.55 |
8.45~9.25 |
0.8~1 |
210 |
840 |
81 |
|
5/16'' |
7.85~8.45 |
10.55~11.45 |
0.8~1 |
175 |
700 |
131 |
|
3/8'' |
9.65~10.35 |
12.25~13.15 |
0.8~1 |
165 |
660 |
182 |
|
1/2'' |
12.55~13.25 |
15.85~17.25 |
0.9~1.5 |
120 |
480 |
211 |
|
5/8'' |
15.75~16.35 |
18.65~19.25 |
1~1.5 |
88 |
352 |
252 |
|
3/4'' |
18.65~19.25 |
22.15~23.45 |
1~1.5 |
75 |
300 |
323 |
|
1'' |
24.85~25.65 |
28.85~29.85 |
1~1.5 |
62 |
248 |
485 |
Product Description:
SAE 100 R14 Hose is a high performance hydraulic hose designed for use in demanding hydraulic systems. Made of resin, this hose offers excellent chemical and high temperature resistance, making it ideal for use in harsh environments. It is designed in accordance with SAE J517 100R14 to ensure stability and reliability under high pressure.
SAE 100 R14 Hose usually consists of three parts: inner, reinforcement and outer. The inner layer is made of high quality resin material with good chemical resistance and oil resistance, which can effectively prevent medium leakage and wear of the inner wall of the hose. The reinforced layer generally uses high-strength fibers or wire to provide strong compression resistance and prevent the hose from expanding or bursting under high pressure conditions. The outer layer is a wear-resistant protective layer to resist the invasion of external physical and chemical factors and extend the service life of the hose.
Overall, the SAE 100 R14 Hose provides a reliable solution for a wide range of hydraulic systems thanks to its excellent chemical resistance, high temperature resistance and high pressure stability. Whether in harsh working environments or high-pressure hydraulic systems, it ensures a safe and stable transmission medium and is an indispensable component in industrial applications.
